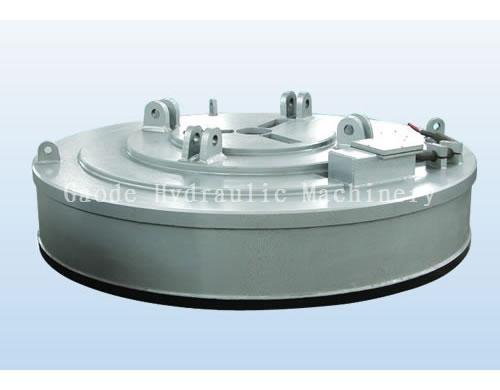

MW61 Series Lifting Electromagnet (Lifting Magnet)

MW61 Series Lifting Electromagnet (Lifting Magnet)

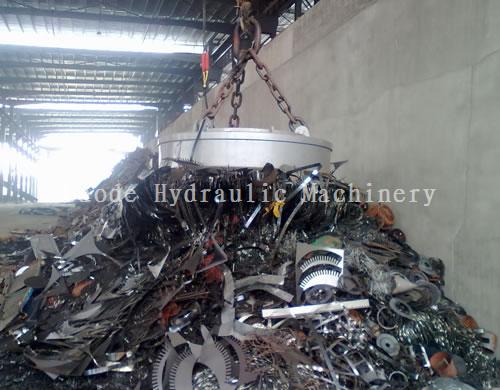

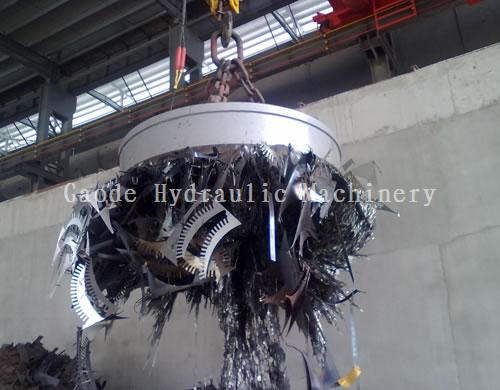

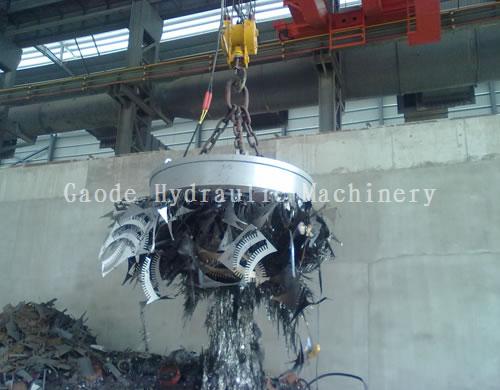

This MW61 series lifting electromagnet or lifting magnet is usually applied to lift and transport cutting scraps, steel scraps, cast iron ingot, etc. This series of lifting electromagnets can be applied to metallurgy, mine, machinery industry, communication industry, etc. In addition, the oval shaped magnet lifter can be used as electromagnetic manipulator to hold magnet-conductive materials.
“MAC ” offers both a standard line of electromagnets and custom designed electromagnetic lift systems. The advantage of being able to switch the magnetic field by using an electrical signal makes the lifting electromagnet the best choice for certain applications. Battery backup or uninterruptable power supplies (UPS) can be used to maintain safe lifting even during an electrical power outage use.

As a member of CRRA (China's Resources Recycling Assembly), MAC is also known as “Wuxi AAA Grade Trustworthy Enterprise”. MAC Industrial Co., Ltd has realized to produce 500 balers, 800 shears, 100 shredders and 25 set scrap steel shredder line annually. The products are widely used in the industry of metallurgy, forge and press, casting textile, chemical fiber, and Waste recovery and so on. Lifting electromagnet is added part for attracting scraps.

Parameter of MW61 Oval Lifting Electromagnet (Lifting Magnet):

Model Item MW61- 200150L MW61- 250150L MW61- 300150L MW61- 180160L MW61- 250200L MW61- 150110L
Dimension A 2000 2500 3000 1800 2500 1500
B 1500 1500 1500 1600 2000 1100
Mass (kg) 4200 5700 2050 5000 8420 2500
Power (kw) 31.9/15.2 46.4/22 56.6/27 32.7/15.6 51.9/24.6 11.9
Cold-state current (A) 110/76 160/110 195/135 113/78 179/123 54
Lifting capacity (㎏) Cutting scraps 1000/800 1300/1000 1500/1250 1150/900 2300/1800 800/700
Steel scraps 1400/1150 1800/1500 2100/1800 1600/1250 3300/2550 1200/1000
Cast iron ingot 2200/1900 2800/2400 3400/2850 2550/2000 5000/4200 1500/1200
Spring cable reel DJ22-15·2/50A DJ21-15·2/50A DJ21-15·2/50A DJ2-15·2/100A DJ2-15·2/100A DJ2-15·2/100A
Rectifier control cabinet access GDK-5 GDK-10 GDK-15 GDK-17 GDK-20 GDK-25
