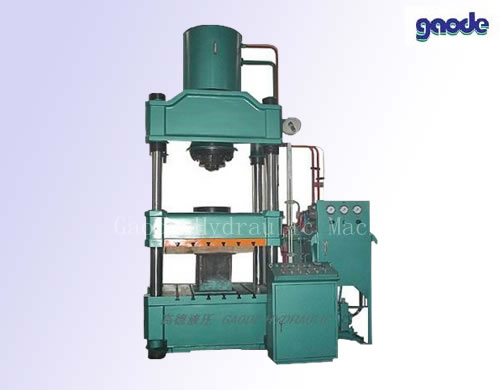

HC32 Series Four Column Hydraulic Machine

Description:
HC32 series four column hydraulic machine adopts the PLC controller. The hydraulic system is equipped with the advanced cartridge inserted valve or slide valve system. Like a folding machine, when fitted with suitable die, this hydraulic press can be used to press the flange of metal, suppress and form the plastic, glass steel, insulation material and rubber. The pressure and speed can be adjusted for different needs.

Features of Four Column Hydraulic Machine:
This HC32 series hydraulic press has extra long guide bushings to reduce platen tilt, which controls platen parallelism. The platen bushings are precision in-lined bored and fitted to posts to assure smooth platen movement. The Hydraulic lines are clamped for control of shock vibration to reduce stresses in the lines. Pipes are butt welded to reduce leaks.

Technical Specifications of Four Column Hydraulic Machine:

Type	Nominal Force (KN)	Slide block stroke (MM)	Aperture Height (MM)	Working platform size		Ejecting force (KN)	Ejecting Stroke (MM)	Slide block speed			Power (KW)
Type	Nominal Force (KN)	Slide block stroke (MM)	Aperture Height (MM)	Left and right (MM)	Front and back (MM)	Ejecting force (KN)	Ejecting Stroke (MM)	Zero load down(mm/s)	Work(mm/s	Backhaul(mm/s)	Power (KW)
HC32-250	250	360	600	500	420			110	20-40	150	5.5
HC32-400	400	350	700	460	460			55	10	105	5.5
HC32-630	630	400	600	570	500	180	150	115	10	105	7.5
HC32-750	750	500	750	590	500	300	250	100	25-45	95	7.5
HC32-1000	1000	600	900	720	580	300	200	22	14	47	7.5
HC32-1000A	1000	600	900	630	630	500	300	60	20-40	95	11
HC32-1600	1600	710	1000	900	800	300	200	120	10	60	11
HC32-2000	2000	710	1120	900	900	400	250	100	11	88	15
HC32-2000B	2000	710	1120	1000	900	400	250	90	18	80	15
HC32-3150	3150	800	1250	1120	1120	630	300	100	12	50	22
HC32-3150A	3150	800	1250	1250	1120	630	300	100	12	60	22
HC32-4000	4000	800	1250	1250	1250	630	300	120	8	92	30
HC32-5000	5000	900	1500	1400	1400	1000	300	120	10	80	44
HC32-5000A	5000	900	1500	2200	1400	1000	300	120	10	80	44

As a China hydraulic press manufacturer, our products include: Alligator Shear, hydraulic metal balers,loose material balers,horizontal balers, four column hydraulic machine, square sheet shear, metal chip briquetting presses, scrap steel shredder line and so on. Our products have been exported to Australia, New Zealand, America, Brazil, Ukraine, Pakistan, Indonesia, Myanmar, Yemen, Hong Kong and South Africa, etc.
