HPA500 Automatic Belting Horizontal Balers

HPA500 Automatic Belting Horizontal Balers

Description:

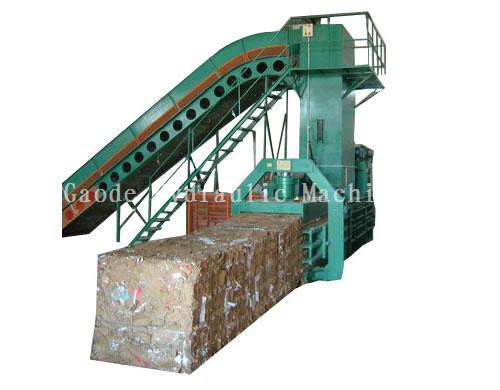

The HPA500 automatic belting horizontal balers are efficient, automatic in baling a variety of materials (from cardboard, paper to packing material and fibers). The key features of this 50 ton auto-tie baling machine are fully automatic compressing, strapping, wire cutting, and bale ejecting. This makes the horizontal baler a workhorse, capable of large scale recycling without excessive labor. The automatic horizontal baler is controlled by a PLC system, which promotes uniformity and safety. There are many feed apertures, which are capable of handling large bulk material up to 900×720 mm.

Features of Automatic Horizontal Baler:
1. PLC control system of the automatic horizontal baler simplifies the operation and promotes accuracy.
3. Once pressed the operation button, compressing, strapping, cutting wires, and bale ejecting process can be continuously realized.
4. The adjustable bale length of automatic horizontal baler can meet different bale size requirements.
5. Cooling System of this 50 ton auto-tie baling machine is used to cool down the hydraulic oil. Either air-cooling or water-cooling is available.
6. Automatic feeding conveyor can be installed for promoting feed speed and maximizing through put.

Application of Automatic Horizontal Baler:
The HPA500 automatic belting horizontal balers apply baling: Cardboard, paper, cartons and boxes, natural fibers, packing materials such as OCC, ONP, and OMG, etc. View vertical baler for cardboard baling solution.

Parameter of Auto-tie Baling Machine:

Model Force(TON) Pressure (KG/CM 2) Feeding Opening (L×W) MM Power (KW) Bale Spec (MM)
HPA500 50 9.6 900×720 22 720×720
REMARKS: Bale length is adjustable, non standard design and customization of products possible. Optional equipment includes iron chain conveyer, PVC belt conveyor, or pneumatic conveyor(air duct)

As a professional 50ton auto-tie baling machine supplier, we have been approved by ISO9001 (2000) Quality System, CQC and honored by “Jiangsu Famous-brand Product”. As a member of CRRA (China's Resources Recycling Assembly), Lanteky is also known as “Wuxi AAA Grade Trustworthy Enterprise”. Lanteky Industrial has realized to produce 500 balers, 800 shears, 100 shredders and 25 set scrap steel shredder line annually. The automatic horizontal balers are widely used in the industry of metallurgy, forge and press, casting textile, chemical fiber, and Waste recovery and so on.
