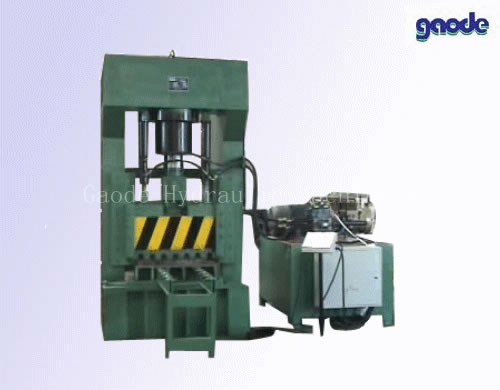

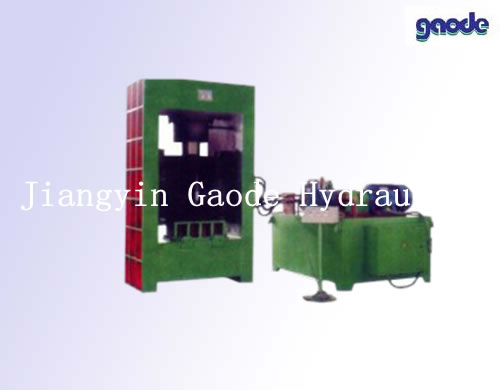

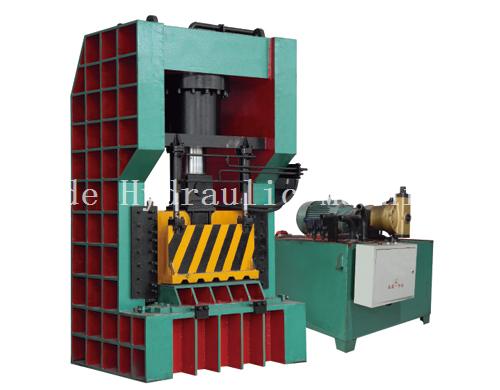

HC42 Series of Square Sheet Shears
Description:
HC42 series of square sheet shears are mainly used to cut sheet metal into different sizes. These machines function as flame cutting. The cost of production is greatly reduced.
As a China square plate shear manufacturer, the products are widely used in the industry of metallurgy, forge and press, casting textile, chemical fiber, and waste recovery and so on. We have owned the self-managerial Import and Export Authority for several years. Our square sheet shears have been exported to Europe, America, Middle East Africa and the Southeast Asia regions.
Parameters of Square Sheet Shear:
| Type | Nominal Force | Blade Length | Shearing Frequency | Max Blade Opening | Max Shearing Plate Size | Power |
| (KN) | (MM) | (time/min) | (MM) | (MM) | (KW) | |
| HC42-1200 | 1200 | 600/800 | 7-15 | 120 | 20×600 | 15 |
| 1200 | 20×1200 | |||||
| HC42-1600 | 1600 | 600/800 | 25×600 | 18.5 | ||
| 1200 | 25×1200 | |||||
| HC42-2000 | 2000 | 600/800 | 25×500 | 22 | ||
| 1200 | 25×1200 | |||||
| HC42-2500 | 2500 | 600/800 | 30×500 | 30 | ||
| 1600 | 30×1600 | |||||
| HC42-3150 | 3150 | 800 | 35×800 | 37 | ||
| HC42-5000 | 5000 | 800 | 40×800 | 44 | ||
| RMK: 1.Increase the blade opening size and reduce the shearing time | ||||||
| 2.When the tensile strength of the scrap more then 450Mpa, the scrap is not allowed to shear | ||||||
