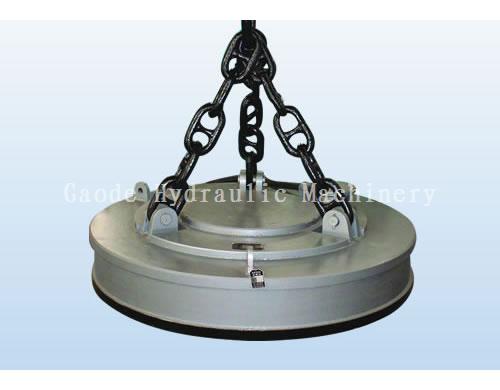

MW5 Series Lifting Electromagnet
Description:

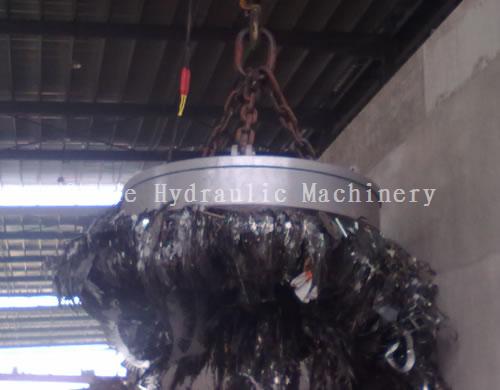

Lifting electromagnet or lifting magnet is used for lifting iron, steel scraps, bars, coils, etc. It can be used in steel plants, ports and other industrial sites. It’s characterized by large attracting force, deep magnetic penetration and long life. A lifting magnet can be used for moving scrap steel from one place to another. In a scrapyard, a crane is equipped with a large iron disc. It’s not a permanent magnet, but it acts like a magnet. The crane operator lowers the electromagnet into a pile of scrap steel and then switches on the electricity. This make steel disc to become a powerful lifting magnet. Scrap steel is attracted to the disc. When the operator switches off the electricity, the scrap steel will fall off the disc. In this way, large amounts of scrap steel can be moved easily from one place to another.
Parameter of MW5 Series Round Lifting Magnet (Electromagnet):
| Model Item | MW5- 70L/1 | MW5- 110L/1 | MW5- 130L/1 | MW5- 150L/1 | MW5- 165L/1 | MW5- 180L/1 | MW5- 210L/1 | MW5- 240L/1 | ||
| Dimension | A | 700 | 1100 | 1300 | 1500 | 1650 | 1800 | 2100 | 2400 | |
| B | 800 | 1080 | 1210 | 1220 | 1230 | 1470 | 1800 | 2020 | ||
| Mass kg) | 500 | 1250 | 2050 | 2700 | 3400 | 4100 | 6800 | 9000 | ||
| Power (kw) | 3.2 | 7 | 11.9 | 15.6 | 17.6 | 22.4 | 27.9 | 33.9 | ||
| Cold-state current (A) | 14.7 | 35.1 | 54 | 71 | 80 | 102.4 | 127 | 154 | ||
| Lifting capacity(kg) | Steel ball | 2500 | 6500 | 8500 | 11000 | 13000 | 14500 | 17000 | 26000 | |
| Steel ingot | 380/200 | 1000/800 | 1400/1100 | 1900/1500 | 2300/1800 | 2750/2100 | 3200/2500 | 4800/3800 | ||
| Steel scrap | 120/100 | 450/400 | 700/600 | 1100/900 | 1350/1040 | 1600/1350 | 2000/1600 | 2850/2250 | ||
| Spring cable reel | DJ22-15·2/50A | DJ21-15·2/50A | DJ21-15·2/50A | DJ2-15·2/100A | DJ2-15·2/100A | DJ2-15·2/100A | DJ1-15·2/150A | DJ1-15·2/150A | ||
| Rectifier control cabinet access | GDK-5 | GDK-10 | GDK-15 | GDK-17 | GDK-20 | GDK-25 | GDK-30 | GDK-35 | ||
Note: The complete equipment of lifting magnet: one lifting electromagnet, one spring cable reel and one rectifier control cabinet access.
There are abundant technical force, advanced test equipment, technology and completed testing means. According to requests of ISO9001:2000 international standard quality system, the products are carried on strict control in the design, production, examination, sale and service. We specially produce ”MAC ” crocodile type metal shears, metal hydraulic baler, 4-column presses, chemical fiber baler, scrap paper baler, plastic baler, square sheet shear, metal chip briquetting presses, disintegrator and so on. Lifting magnet of “MAC ” has large attracting force to help machiens perform well.
